Why a Utility Upgrade Can Make Your Arc Flash Labels Wrong

Your arc flash labels were accurate the day they were printed, but changes in available fault current from the utility can make those labels inaccurate over time.

It's one of the most common blind spots in electrical safety: a facility gets an arc flash study done, labels go on the panels, and everyone moves on. Meanwhile, the utility upsizes a transformer, available fault current increases, and nobody recalculates. The labels stay the same. The hazard doesn't.

Under the 2026 NEC arc flash label requirements, equipment labels must include nominal system voltage, arc flash boundary, available incident energy or the required level of PPE, and the date the assessment was completed. That makes outdated studies much easier to identify during routine inspections.

What Happens When the Utility Changes

Every arc flash calculation starts with one critical input: the available fault current from the utility. This number flows through the entire system model and determines the incident energy at every panel, disconnect, and piece of switchgear in the facility.

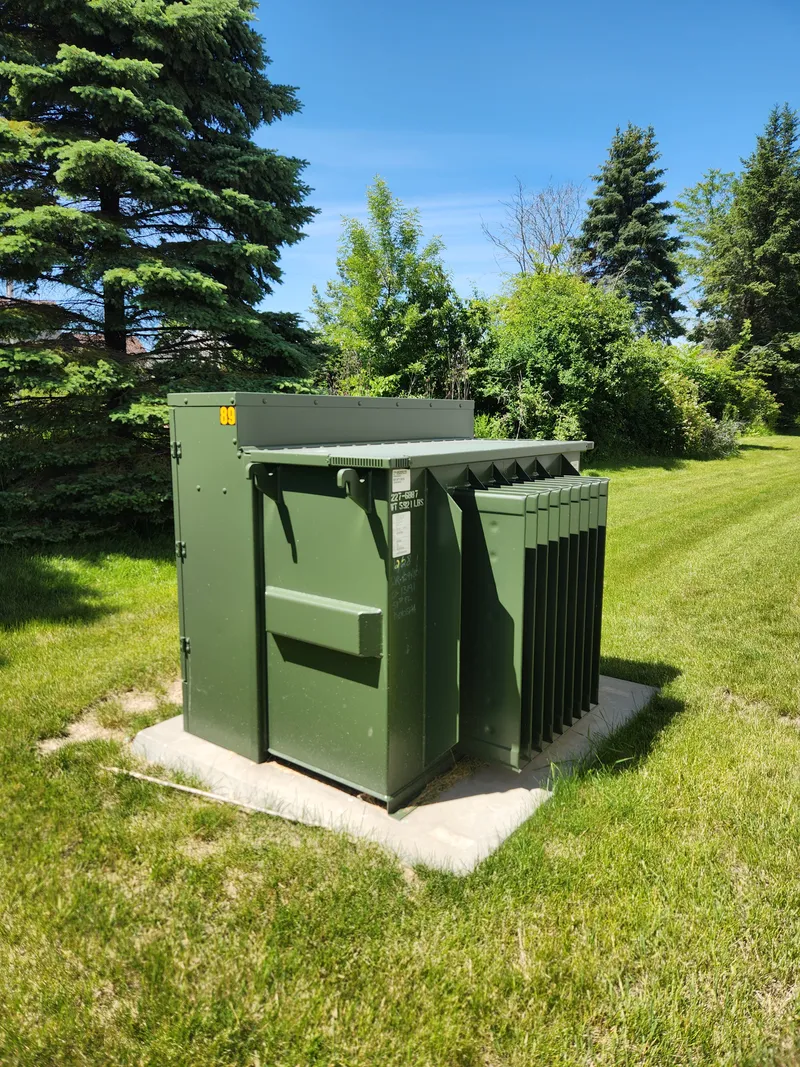

When the utility increases available fault current — whether by upsizing a transformer, reconfiguring a feeder, or upgrading infrastructure — that change ripples downstream through the entire electrical system.

Higher available fault current means higher incident energy. Higher incident energy means the PPE requirements at electrical equipment may increase, while the existing labels still show the old values.

Here's the problem: most utilities don't notify facilities when they make upstream changes. Even when they do, facility managers rarely connect a utility upgrade to their arc flash study. There's no automatic flag that says "your labels are now wrong." It's a silent change with real consequences.

Why Your Labels Are Now Wrong

Arc flash labels aren't generic. Each one is calculated based on the specific fault current available at that point in the system at a specific moment in time. Change the input, and every output changes with it.

If a label shows 8 cal/cm² but the actual incident energy has increased to 14 cal/cm², workers must wear arc-rated PPE with a significantly higher energy rating. That difference determines whether the PPE provides adequate protection.

The label may still look correct. It's formatted properly and contains all required information. But the numbers behind it may no longer reflect the actual electrical system.

That's what makes this situation dangerous. There's no visual indicator that anything has changed. The label doesn't turn red when fault current increases. It simply becomes outdated.

It's Not Just Utility Upgrades

Utility changes are the most common cause, but they are not the only reason arc flash labels become inaccurate. Any modification that changes fault current or system impedance can affect the results of an arc flash study.

Examples include:

• Adding large motors (which contribute fault current during a fault event)
• Service entrance upgrades
• Generator installations or capacity changes
• Switching between multiple utility feeds
• Adding or removing transformers
• Replacing protective devices with different trip characteristics
• Significant changes in cable lengths or bus configurations

Any of these changes can shift incident energy levels enough to affect PPE requirements, arc flash boundaries, or equipment ratings. In many cases, these system changes occur without anyone thinking about updating the arc flash study.

The 2026 NEC Makes This Harder to Ignore

Under previous code cycles, arc flash labeling was primarily enforced through OSHA's General Duty Clause, which referenced NFPA 70E as the safety standard. Enforcement was typically reactive, and many facilities went years without inspection.

The 2026 NEC rewrites Section 110.16 and changes that dynamic. Detailed arc flash labels with calculated information — including nominal system voltage, arc flash boundary, available incident energy or required PPE level, and the assessment date — are now explicitly required by code.

Once jurisdictions adopt the 2026 NEC, inspectors can verify this information during routine electrical inspections.

The assessment date becomes critical. A label showing a study date that predates a known utility upgrade immediately signals that the study may no longer represent current conditions.

NFPA 70E has long required arc flash studies to be reviewed at least every five years. However, major system changes should trigger an update immediately rather than waiting for the five-year review cycle.

What a Recalculation Actually Involves

Updating an arc flash study after a system change typically does not require starting from scratch. If a system model already exists, the process is relatively straightforward:

1. Obtain updated utility data by requesting current available fault current information from the utility.
2. Update the system model with the new utility data and any electrical changes that have occurred since the previous study.
3. Run new short-circuit calculations to determine updated fault currents at each bus.
4. Recalculate incident energy levels throughout the system.
5. Compare results to identify locations where incident energy or arc flash boundaries have changed.
6. Update labels where the calculated values have changed.

Because the system model already exists, the cost of recalculation is typically much lower than the cost of the original study.

In practice, arc flash recalculations frequently show incident energy increases of 30 to 60 percent after utility upgrades, particularly when transformer sizes increase or feeder impedance is reduced.

A Common Scenario

A facility completes an arc flash study in 2019 and installs labels on every panel.

In 2022, the serving utility upgrades the transformer feeding the facility. Available fault current increases from 22 kA to 35 kA. The facility is not notified, or the connection to the arc flash study is never made.

By 2025, the labels are six years old. The original study calculated incident energy using 22 kA of available fault current. The actual system now sees 35 kA. At several locations, incident energy has increased from approximately 8 cal/cm² to 14 cal/cm².

Workers who were adequately protected with 8 cal/cm² arc-rated PPE now require PPE rated for at least 14 cal/cm².

For several years, personnel may be working based on labels that appear legitimate but no longer reflect the real hazard level. Code violations hiding behind those panels aren't visible until someone actually recalculates the numbers.

That is exactly the gap where incidents occur.

How to Know If You're Exposed

Consider the following questions:

• When was the last arc flash study completed? If it has been more than five years, a review is already required under NFPA 70E.
• Has the utility made any system changes since that study? Request updated fault current data and compare it to the values used in the original analysis.
• Has electrical equipment been added or modified? New motors, generators, transformers, or protective devices can all change arc flash results.
• Can you verify that the values on your labels match current system conditions?

If the answer to any of these questions is uncertain, the study should be reviewed.

Facilities that stay ahead of this issue treat the arc flash study as a living document that is updated whenever the electrical system changes. Understanding why an arc flash study pays for itself makes the case for keeping it current.
